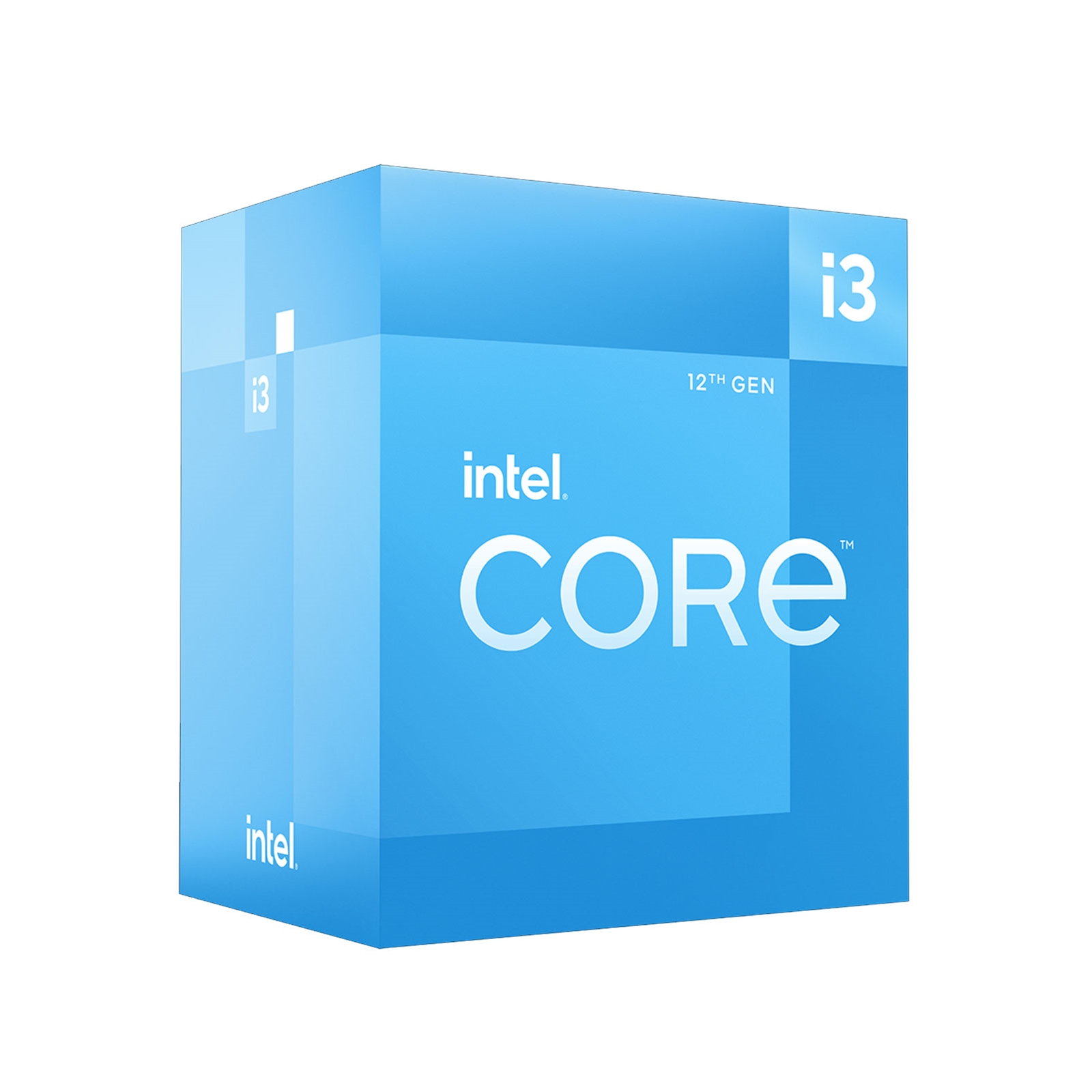

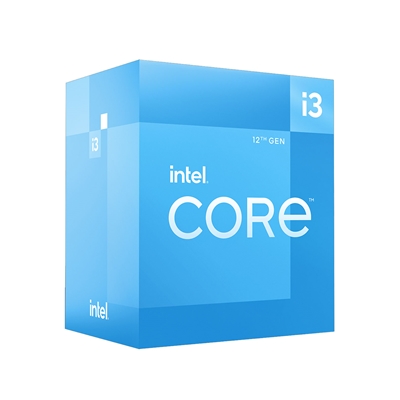

Intel Core i3 12100 4 Core Processor 8 Threads, 3.3GHz up to 4.3GHz Turbo, Alder Lake Socket LGA 1700, 12MB Cache, 60W, Maximum Turbo Power 89W, Intel UHD 730 Graphics

Description

Chip Name
BX8071512100 Alder Lake

Socket
LGA1700

Total Cores
4

Number of Performance Cores
4

Number of Efficient Cores
0

Total Threads
8

Max Turbo Frequency
4.30Ghz

Intel Turbo Boost Max Technology 3.0 Frequency
N/A

Performance-core Max Turbo Frequency
4.30Ghz

Efficient-core Max Turbo Frequency
N/A

Performance-core Base Frequency
3.30Ghz

Efficient-core Base Frequency
N/A

Cache
12MB

Total L2 Cache
5MB

Processor Base Power
60W

Maximum Turbo Power
89W

Max Memory Size (dependent on memory type)
128GB

Processor Graphics
Intel UHD Graphics 730

Graphics Base Frequency
300 MHz

Graphics Max Dynamic Frequency
1.40 GHz

Graphics Output
eDP 1.4b, DP 1.4a, HDMI 2.1

Execution Units
24

Max Resolution (HDMI)
4096 x 2160 @ 60Hz

Max Resolution (DP)
7680 x 4320 @ 60Hz

DirectX Support
12

OpenGL Support
4.5

Intel Quick Sync Video
Yes

Intel Clear Video HD Technology
Yes

Number of Displays Supported
4

OpenCL Support
2.1

Direct Media Interface (DMI) Revision
4.0

PCI Express Revision
5.0 and 4.0

Max Number of PCI Express Lanes
20

Heatsink
Y

Packaging
Retail
