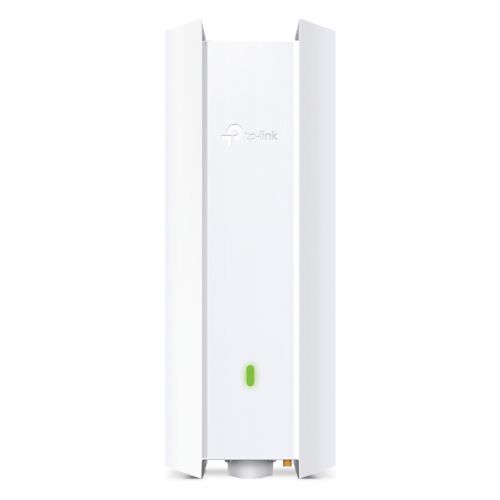

TP-LINK (EAP650-OUTDOOR) Omada AX3000 Indoor/Outdoor Wi-Fi 6 Access Point, Dual Band, OFDMA & MU-MIMO, PoE, Mesh Technology

TP-LINK (EAP650-OUTDOOR) Omada AX3000 Indoor/Outdoor Wi-Fi 6 Access Point, Dual Band, OFDMA & MU-MIMO, PoE, Mesh Technology

Compare

261.91

5 in stock

SKU: AP-3000TPEAP650OUTDOOR Categories: , , , Tag:

Description

AX3000 Indoor/Outdoor WiFi 6 Access Point


  • Superior WiFi 6 Speeds: Delivers dual band speeds of up to 3 Gbps powered by the latest WiFi 6 technology.
  • Higher Network Efficiency: Enjoy faster speeds on more devices with less lag with OFDMA and MU-MIMO.
  • 160 MHz Bandwidth Channel: Double the data at peak transmission times on a single stream with HE160.2
  • Long-Range Coverage: Dedicated high-power amplifier and professional antennas with an IP67 weatherproof enclosure.
  • Omada Mesh Technology: Enables wireless connectivity between access points for extended range and flexible deployment.
  • Stay Smooth with Seamless Roaming: Users can enjoy seamless streaming across the property with their devices switching effortlessly between access points.
  • PoE Powered: Supports both 802.3at PoE+ and Passive PoE (adapter included) power supply for flexible installation.
  • Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or the Omada app.




Long-Range Coverage
Professional antennas equipped with high-power amplifiers utilize WiFi 6 technology to provide strong and expansive wireless coverage to various outdoor environments.

Experience the Peak of WiFi 6 with Smart Antennas
TP-Link Smart Antenna technology brings lower interference, longer coverage, and higher performance. EAP650-Outdoor is equipped with horizontally polarized antennas and vertically polarized antennas, while its intelligent algorithms automatically select the optimal antennas to ensure the peak WiFi experience ideal for outdoor applications.

Flexible Deployment with Omada Mesh and PoE Support
  • Less Wiring with Mesh – With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.*3
  • Powered with PoE+ Switch – Powered and connected by an 802.3at PoE+ switch using one single cable for convenient deployment.
  • Powered with Passive PoE – Powered and connected by the provided passive PoE adapter using one single cable, ideal for home WiFi deployment.

Always Stay Smooth with Seamless Roaming

Ensures customers enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.

IP67 Weatherproof Enclosure for Outdoor Environments
EAP650-Outdoor is totally resistant to dust ingress, shock, vibration, and moisture, withstanding the most extreme environments.

Versatile Mounting Solutions
Our mounting kits provide flexible installation, whether inside or outside.

Seamless Integration into the Omada SDN Platform
The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface.

Easy Management with the Omada
Follow the configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a phone or tablet.





Description

Specification

  • Primary Function: Access Point
  • #Hide#Access Point Mode: Yes (Access Point Mode)
  • #Hide#Wireless Standard: 802.11ax (Wi-Fi 6/6E)
  • Bands: Dual Band
  • Max Wireless Transfer Rate: 2402 Mbps
  • Max Wired Transfer Rate: 10/100/1000 Mbps
  • Interface(s): 1 x Gigabit Ethernet (RJ-45)
    Support 802.3at PoE and Passive PoE
  • Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
  • Antenna(s): 2.4 GHz: 2x 4 dBi
    5 GHz: 2x 5 dBi
  • Button(s): Reset
  • Power Supply: 802.3at PoE
    48V Passive PoE (PoE Adapter Included)
  • Power Consumption: 12.5W (802.3at PoE or Passive PoE)
  • Dimensions: 280.4 x 106.5 x 56.8 mm (without antenna & mounting kit)
  • Weatherproof: Yes (Weatherproof)
  • Frequency: 2.4 GHz & 5 GHz
  • EIRP: “CE: <20 dBm (2.4 GHz, EIRP), <30 dBm(5 GHz, EIRP)"
  • Wireless Functions: “1024-QAM
    4x Longer OFDM Symbol
    OFDMA
    Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
    Enable/Disable Wireless Radio
    Automatic Channel Assignment
    Transmit Power Control (Adjust Transmit Power on dBm)
    QoS (WMM)
    MU-MIMO
    Omada Mesh
    Seamless Roaming
    Band Steering
    Load Balance
    Airtime Fairness
    Beamforming
    Rate Limit
    Reboot Schedule
    Wireless Schedule
    Wireless Statistics based on SSID/AP/Client”
  • Wireless Security: “Captive Portal Authentication
    Access Control
    Wireless Mac Address Filtering
    Wireless Isolation Between Clients
    SSID to VLAN Mapping
    Rogue AP Detection
    802.1X Support
    WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise”
  • Quality of Service: QoS (WMM)
  • Management: “Omada App
    Centralized Management (hardware & software)
    Cloud Access
    Email Alerts
    Management MAC Access Control
    SNMP: v1, v2c
    System Logging Local/Remote Syslog
    SSH
    Web-based Management
    L3 Management
    Multi-site Management
    Management VLAN
    Zero-Touch Provisioning – Requires Cloud-Based Controller”
  • Advanced Functions: See Overview
  • Environment: Operating Temperature: -30–70°C (-22–158°F)
    Storage Temperature: -40–70°C (-40–158°F)
    Operating Humidity: 10–90% RH non-condensing
    Storage Humidity: 5–90% RH non-condensing
  • Package Contents: Access Point EAP650-Outdoor
    Passive PoE Adapter
    Power Cord
    Mounting Kits
    Installation Guide
  • Package Type: Retail
  • Package Weight: 1.6000 kg
  • Warranty: 2 Years
