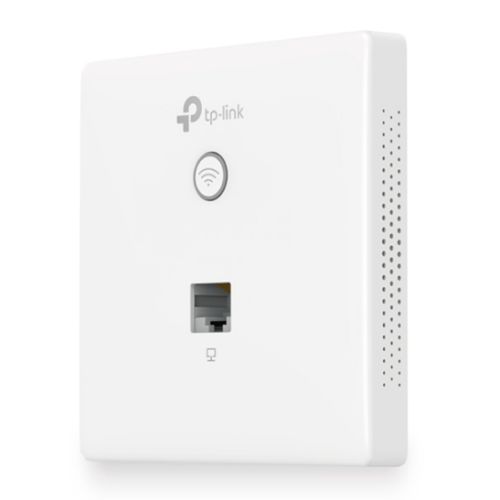

TP-LINK (EAP115-WALL) Omada 300Mbps Wireless N Wall Mount Access Point, PoE, 10/100, Free Software

TP-LINK (EAP115-WALL) Omada 300Mbps Wireless N Wall Mount Access Point, PoE, 10/100, Free Software

Compare

54.47

22 in stock

SKU: AP-300TPEAP115-WALL Categories: , , , Tag:

Description

  • Easy-mount construction enables easy installation into any standard EU-type data wall-box
  • Sleek, compact design blends perfectly with the existing interior style.
  • Free Auranet Controller Software enables administrators to easily manage hundreds of EAPs
  • Support Power over Ethernet(802.3af) for convenient and affordable installation
  • 300Mbps wireless data rate for uninterrupted wireless connection
  • Captive portal provides one convenient method of authentication for Wi-Fi guests
  • Access Control restricts or allows the client to access the specified network segment
  • Reboot Schedule enables all the APs to be rebooted automatically within a specified time
  • WPA/WPA2-enterprise, 802.1X with RADIUS secure authentication and rogue access point detection ensure the security of WLAN
  • Compatible with 802.11 b/g/n products
  • QoS function prioritizes data, voice, and video applications to ensure time-sensitive traffic takes priority over all other traffic
  • Multiple operating modes satisfy different application conditions including managed AP and standalone AP modes
  • Load balance ensures large numbers of users have smooth network experiences in large business networks
  • Multi-SSID divides multiple wireless network for different users
  • Rate limit on per SSID to restrict the bandwidth of each client



Installation Made Easy
  1. Detach the faceplate of the junction box* with a screwdriver.
  2. Remove the faceplate of the EAP.
  3. Connect an in-wall Ethernet cable to the Uplink+POE port.
  4. Secure the access point to the wall using the nails provided.
  5. Press the faceplate back into position.
*Fit for flowing two kinds of wall junction box



Perfectly Formed
The EAP115-Wall would blend seamlessly into any business setting with a refined, minimalist appearance. A slimline design includes casing that’s just 11 mm in thickness.



Effortless Deployment
With 802.3af Power over Ethernet supported there’s no need for additional wiring. Simply plug in existing Ethernet cables and you’re ready to go.



Complete Wireless Coverage
An EAP in each room guarantees a strong wireless signal and allows guests to enjoy their own private Wi-Fi network.



Centralized Management
Manage and monitor hundreds of EAPs with ease, all from a single location. TP-Link’s free Auranet Controller Software provides an intuitive management interface with no special training required. Wi-Fi management has never been so simple or cost-effective.



Customized Guest Authentication with Captive Portal
Captive portal provides a convenient method of authentication for Wi-Fi guests. Choose from a range of authentication options and create a unique authentication page to advertise your business to users.

Description

Specification

  • Primary Function: Access Point
  • #Hide#Access Point Mode: Yes (Access Point Mode)
  • #Hide#Wireless Standard: 802.11n (Wi-Fi 4)
  • Bands: N/A
  • Max Wireless Transfer Rate: 300 Mbps
  • Max Wired Transfer Rate: 10/100 Mbps
  • Interface(s): 2 x 10/100Mbps Ethernet (RJ-45) Port
  • Wireless Standards: IEEE 802.11n/g/b/a
  • Antenna(s): 2 x Internal 1.8dBi Omni
  • Button(s): “LED/Wi-Fi Button, RESET”
  • Power Supply: PoE (IEEE 802.3af)
  • Power Consumption: 2.8 W
  • Dimensions: 86.8 x 86.8 x 30.2 mm
  • Weatherproof: No
  • Frequency: 2.4GHz
  • Wireless Functions: Multiple SSIDs (Up to 8 )
    Enable/Disable Wireless Radio
    Automatic Channel Assignment
    Transmit Power Control
    QoS(WMM)
    Load Balance
    Rate Limit
    Reboot Schedule
    Wireless Schedule
    Wireless Statistics (SSID/AP/Client)
  • Wireless Security: “Captive Portal Authentication
    Access Control
    Wireless Mac Address Filtering
    Wireless Isolation Between Clients
    SSID to VLAN Mapping
    Rogue AP Detection
    802.1X Support
    64/128/152-bit WEP / WPA / WPA2-Enterprise,
    WPA-PSK / WPA2-PSK”
  • Management: “EAP Controller Software
    Email Alerts
    LED ON/OFF Control
    Management MAC Access Control
    SNMP: v1,v2c
    Local/Remote Syslog
    Telnet
    Web-based Management:HTTP/HTTPS
    L3 Management
    Multi-site Management
    Management VLAN”
  • Advanced Functions: See Overview
  • Environment: Operating Temperature: 0C~40C (32F~104F)
    Storage Temperature: -40C~70C (-40F~158F)
    Operating Humidity: 10%~90% non-condensing
    Storage Humidity: 5%~90% non-condensing
  • Package Contents: Access Point EAP115-Wall
    Installation Guide
    Mounting Screw
  • Package Type: Retail
  • Package Weight: 0.2000 kg
  • Warranty: Limited Lifetime
