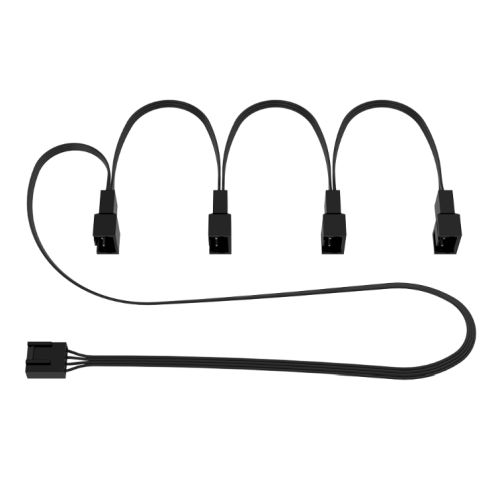

Arctic 4-pin PWM Fan Splitter Cable – PST Splitter Cable for 4 Case Fans

Arctic 4-pin PWM Fan Splitter Cable – PST Splitter Cable for 4 Case Fans

Compare

3.09

171 in stock

SKU: CABL-ARCPWM4FANS Categories: , , , , , Tag:

Description

Increase Your Ventilation


Even if you don't have enough fan headers on your motherboard, the 4-Pin PWM Fan Splitter Cable allows you to connect up to 4 case fans to a single header. If this is not enough, ARCTIC also offers the Case Fan Hub, an accessory that has 10 fan slots and is powered directly by SATA power.



Improved Cable Management
The 4-Pin PWM Fan Splitter Cable makes it easier to manage your cables, allowing you to easily place fans at any position in your case. The 70 cm distance to the first fan connector allows you to run the cable in an area of the case where it is not visible.



Synchronous Fan Control
Your configured PWM signal will be synchronously sent to all fans which are connected to the 4-Pin PWM Fan Splitter Cable. The RPM of the first fan socket will be read out and fed back to your system.




Minimal Cross-Section – Maximum Flexibility
ARCTIC uses the same materials for the 4-Pin PWM Fan Splitter Cable as for the case fan cables. These materials have proven to be durable and flexible. Additional sheathing was intentionally omitted in order to keep the cross-section small. This allows the cables to be incorporated inconspicuously into the existing cable management system and also to be routed through narrow areas of the case.



Voltage Control Is Also Possible
The 4-Pin PWM Fan Splitter Cable is also compatible with 3-pin fans and connectors. This allows the fan speed to be controlled via the voltage and is passed on to all connected fans. As with 4-pin PWM fans, the speed of the first fan is read out, while the fourth pin remains free.





Description

Specification

  • Type: Fan Splitter Cable
  • Connector(s): 1 x 4-pin PWM Connector
    4 x 4-pin PWM Socket (rpm signal on first socket only)
  • Length: 70 cm
  • Colour: Black
  • Additional Features: Cable length (to first socket): 400 mm
    Cable length (between sockets): 100 mm

    See Overview for more product details

  • Package Weight: 0.0120 kg
  • Warranty: 1 Year
