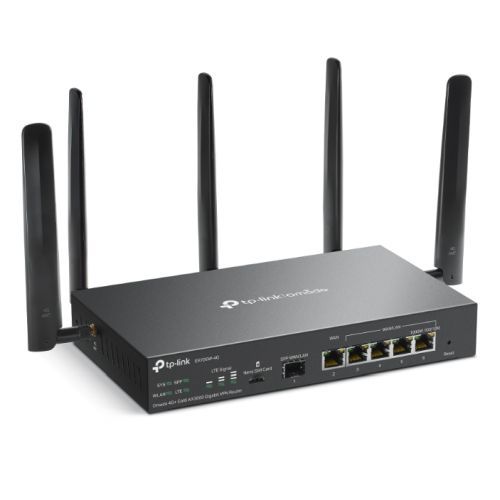

TP-LINK (ER706W-4G) Omada 4G+ Cat6 Dual Band AX3000 VPN Router, 6x GB Ports, Omada Mesh, High-Security VPN

TP-LINK (ER706W-4G) Omada 4G+ Cat6 Dual Band AX3000 VPN Router, 6x GB Ports, Omada Mesh, High-Security VPN

Compare

335.23

6 in stock

SKU: ROU-VPNER706W4G Categories: , Tag:

Description

Omada 4G+ Cat6 AX3000 Gigabit VPN Router


  • Support 4G+ Cat6: Insert a Nano SIM card to enjoy up to 300 Mbps.
  • AX3000 Dual-Band WiFi 6: Supports 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz
  • 6 Gigabit Ethernet Ports: Provide high-speed wired connectivity.
  • 5 High-Gain Detachable Antennas: Extend and concentrate the Wi-Fi signals.
  • Centralized Management: Cloud access and the Omada app for easy management.
  • Omada Mesh: Seamlessly connects to EAPs that support mesh technology.
  • High-Security VPN: Supports IPSec / SSL / WireGuard / OpenVPN / PPTP / L2TP VPN.



Description

Specification

  • Type: 3G/4G Router
  • Connectivity: Wireless
  • Max Wireless Transfer Rate: 2402 Mbps
  • Max Wired Transfer Rate: 10/100/1000 Mbps
  • Bands: Dual Band
  • Signal Rate: “5GHz: Up to 2402Mbps
    2.4GHz: Up to 574Mbps (HE160)

    4G Frequency:
    Downlink: 300 Mbps;
    Uplink: 50 Mbps”

  • Interface(s): 1 x Gigabit SFP WAN/LAN Port
    1 x Gigabit WAN Port
    4 x Gigabit LAN/WAN Ports
    1 x Nano SIM Card Slot
  • Frequency: 2.4GHz and 5GHz
  • Button(s): Reset Button
  • Power Supply: 12VDC / 2A Power Adapter
    Max Power Consumption: 17.3W
  • Antenna(s): Wi-Fi:
    Three 5GHz 5.5dBi & 2.4GHz 4.5dBi dual-band detachable antennas

    LTE:
    Two 4.0dBi omnidirectional detachable antennas

  • Dimensions: (WxDxH )226 x 131 x 35 mm) (Antenna dimensions are not
    included)
  • Wireless Functions: Seamless Roaming
    Mesh (with EAP that supports Mesh)
    OFDMA
    Beamforming
    MU-MIMO
    Rate Limit: Based on SSID/Client
    Airtime Fairness
    Multiple SSIDs: 16 in total (8 per radio)
    Guest Network
  • Security:Wireless Encryption:
    WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise

    Access Control:
    Source/Destination IP Based Access Control

    Filtering:
    Web Group Filtering
    URL Filtering
    Web Security

    ARP Inspection:
    Sending GARP Packets
    ARP Scanning
    IP-MAC Binding

    Attack Defense:
    TCP/UDP/ICMP Flood Defense
    Block TCP Scan (Stealth FIN/Xmas/Null)
    Block Ping from WAN”

  • DHCP: DHCP Server
    DHCPv6 PD Server (only in Standalone Mode)
    DHCP Options Customization
    DHCP Address Reservation
    Multi-IP Interfaces
    Multi-Net DHCP
  • Port/NAT Forwarding: “66 Byte Packet forwarding rate:1,453,489 pps / 1,453,488 pps
    1,518 Byte Packet forwarding rate: 81274 pps / 91275 pps”
  • VPN Support:IPsec VPN :
    100 IPSec VPN Tunnels
    LAN-to-LAN, Client-to-LAN
    Main, Aggressive Negotiation Mode
    DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
    IPsec Failover
    IKE v1/v2
    MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
    NAT Traversal (NAT-T)
    Dead Peer Detection (DPD)
    Perfect Forward Secrecy (PFS)

    PPTP VPN :
    PPTP VPN Server
    PPTP VPN Client (10)
    50 Tunnels
    PPTP with MPPE Encryption

  • .:
    L2TP VPN :
    L2TP VPN Server
    L2TP VPN Client (10)
    50 Tunnels
    L2TP over IPSec

    OpenVPN :
    OpenVPN Server
    OpenVPN Client (5)
    55 OpenVPN Tunnels
    “”Certificate + Account”” Mode
    Full Mode

  • Management: Omada App
    Centralized Management
    Cloud Access
    Zero-Touch Provisioning

    Maintenance:
    Web Management Interface
    Remote Management
    Export & Import Configuration
    SNMP v1/v2c/v3
    Diagnostics (Ping & Traceroute)
    NTP Synchronize
    Port Mirroring
    CLI (Standalone Mode)
    Syslog Support

    Management Features:
    Automatic Device Discovery
    Intelligent Network Monitoring
    Abnormal Event Warnings
    Unified Configuration
    Reboot Schedule
    Captive Portal Configuration

  • Dynamic DNS: “Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization”
  • Advanced Features:ACL:
    IP/Port/Protocol/Domain Name Filtering

    Advanced Routing:
    Static Routing
    Policy Routing
    RIP
    OSPF

    Bandwidth Control:
    IP-Based Bandwidth Control

    Load Balance:
    Intelligent Load Balance
    Application Optimized Routing
    Link Backup(Timing, Failover)
    Online Detection

    Session Limit:
    IP-Based Session Limit”

  • .:
    NAT:
    One-to-One NAT
    Multi-Net NAT
    Virtual Server
    Port Triggering
    NAT-DMZ
    FTP/H.323/SIP/IPSec/PPTP ALG
    UPnP
  • Environment: Operating Temperature: 0°C~40°C (32°F~104°F)
    Storage Temperature: -40°C~70°C (-40°F~158°F)
    Operating Humidity: 10% ~ 90% non-condensing
    Storage Humidity: 5%~90% non-condensing
  • Package Contents: ER706W-4G
    Power Adapter
    Quick Installation Guide
  • Package Type: Retail
  • Package Weight: 1.5500 kg
  • Warranty: Limited Lifetime
  • #Hide#Wireless Standard: 802.11ax (Wi-Fi 6/6E)
  • #Hide#Mesh Wi-Fi Support: Yes (Mesh Wi-Fi)
