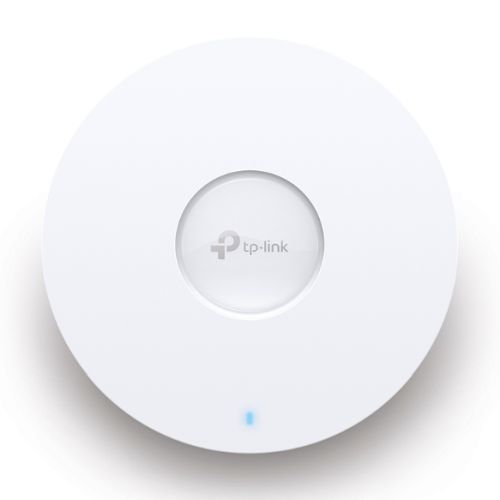

AX3000 Ceiling Mount WiFi 6 Access Point
- Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.
- High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.
- Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app.
- 160 MHz Channel: Double the data at peak transmission times on a single stream with HE160.
- Seamless Roaming: Video streams and voice calls are unaffected as users move between locations.
- Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.
- PoE+ Powered: Supports both 802.3at PoE+ and DC (DC adapter sold separately) power supply for flexible installations.
- Ultra-Slim Design: 160 mm × 33.6 mm elegant design brings more agility.
Lightning-Fast AX3000 WiFi 6 Speeds
Seamless Integration into Omada SDN
- Primary Function: Access Point
- #Hide#Access Point Mode: Yes (Access Point Mode)
- Bands: Dual Band
- Max Wireless Transfer Rate: 2402 Mbps
- Max Wired Transfer Rate: 10/100/1000 Mbps
- Interface(s): 1 x Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
- Antenna(s): Internal Omni:
2.4 GHz: 2x 4 dBi
5 GHz: 2x 5 dBi
- Button(s): Reset
- Power Supply: 802.3at PoE
12V DC (Power Adapter not included)
- Power Consumption: 13.5 W
- Dimensions: 160 x 160 x 33.6 mm
- Weatherproof: No
- Frequency: 5 GHz: Up to 2402 Mbps
2.4 GHz: Up to 574 Mbps
- EIRP: “<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, Band1 & Band2, EIRP)
<27 dBm(5 GHz, Band3, EIRP)"
- Wireless Functions: “1024-QAM
4x Longer OFDM Symbol
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
HE160 (160 MHz Bandwidth)”
- .: Seamless Roaming
Wireless Statistics based on SSID/AP/Client
- Wireless Security: “Captive Portal Authentication
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise”
- Quality of Service: QoS(WMM)
- Management: Omada App
LED ON/OFF Control
Management MAC Access Control
System Logging Local/Remote Syslog
- Advanced Functions: See Overview
- Environment (°C): Operating Temperature: 0–40 °C (32–104 °F)
Storage Temperature: -40–70 °C (-40–158 °F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
- Package Contents: EAP653
Ceiling/Wall Mounting Kits
- Package Type: Retail
- Package Weight: 0.7100 kg
- Warranty: Limited Lifetime
