Kingston ValueRAM 16GB, DDR5, 4800MHz (PC5-38400), CL40, 1.1V, ECC, SODIMM Memory

Kingston ValueRAM 16GB, DDR5, 4800MHz (PC5-38400), CL40, 1.1V, ECC, SODIMM Memory

Compare

76.84

28 in stock

SKU: D5SO16G48KVR40 Category: Tag:

Description

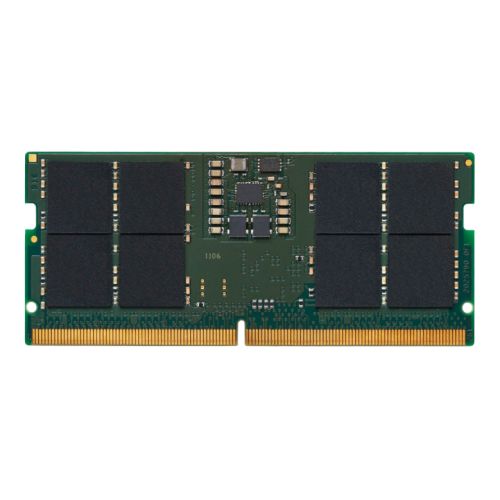

ValueRAM's KVR48S40BS8-16 is a 2G x 64-bit (16GB) DDR5-4800 CL40 SDRAM (Synchronous DRAM), 1Rx8, memory module, based on eight 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 262-pin SODIMM uses gold contact fingers


  • High speed up to 4800MHz
  • Built-in Power Management IC, more t
  • On-Die Error Correcting Code
  • Improved Stability
  • Supports Intel® Core™ 12th series CPU
  • Power Supply: VDD = 1.1V Typical
  • VDDQ = 1.1V Typical
  • VPP = 1.8V Typical
  • VDDSPD = 1.8V to 2.0V
  • On-Die ECC
  • PCB: Height 1.18” (30.00mm)
  • RoHS Compliant and Halogen-Free





Description

Specification

  • Series: Kingston ValueRAM
  • DDR Type: DDR5 SODIMM
  • Size: 1 x 16GB
  • #Hide#Individual Module Size: 16GB
  • Speed: 4800 MHz
  • Compliance: PC5-38400
  • Pins: 262-pin
  • CAS Latency: CL40
  • Data Integrity Check: ECC
  • Voltage: 1.1V
  • Additional Information: See Overview
  • Package Type: Blister Pack
  • Package Weight: 0.0200 kg
  • Warranty: Lifetime
