CyberPower PDU81005 Switched Metered-by-Outlet Power Distribution Unit, 1U Rackmount, 1x IEC C20 Input, 8 Outlets, Real-Time Local/Remote Monitoring & Switching, LCD Display

CyberPower PDU81005 Switched Metered-by-Outlet Power Distribution Unit, 1U Rackmount, 1x IEC C20 Input, 8 Outlets, Real-Time Local/Remote Monitoring & Switching, LCD Display

Compare

824.97

5 in stock

SKU: PDU81005 Category: Tag:

Description

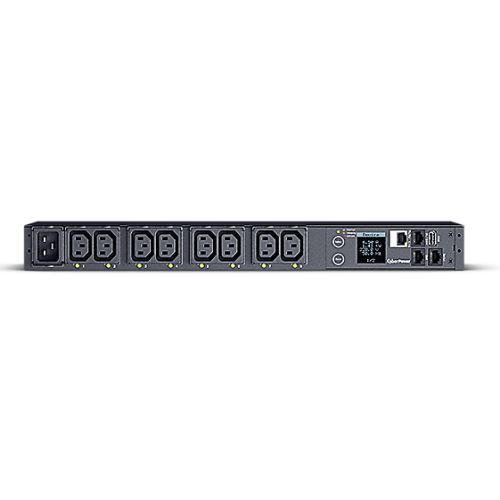

CyberPower PDU81005 Switched Metered-by-Outlet Power Distribution Unit

  • Real-time Local/Remote Monitoring and Switching of Individual Outlet
  • Work under High Temperature
  • +/-1% Measurement Accuracy
  • Digital Real-time Load Display
  • Hot-swappable LCD Design
  • LED Status Indicator
  • Support ENVIROSENSOR
  • PowerPanel Management Software
  • Cord Retention Tray
  • Controllable Receptacles with Power Sequencing
  • Ultra Low Power Consumption
  • Industrial-grade Metal Housing
  • User Configurable Color LCD
  • Rotatable LCD for Proper Display Orientation
  • Firmware Upgrade via USB
  • User-upgradeable Firmware
  • Adjustable Mounting Brackets
  • IEC Receptacle Locking




CyberPower PDU81005 is a network-grade power distribution unit ideal for data center and enterprise applications, providing real-time local/remote monitoring and on/off control of individual outlet for remote reboots, scheduled on/off and more. The Daisy Chain function also allows the PDUs connected together to be monitored and controlled under one IP address.

The digital LCD display is color configurable and rotatable, allowing users to easily maintain and monitor the PDU. Users can change LCD’s colors to easily categorize devices.

The product is built-in with hot-swappable Ethernet module, which can work with PowerPanel Power Management Software and power management web interface for real-time remote monitoring and configuration. Event logging via a web browser or network connection allows users to review a history of power conditions. When specified power events occur, automatic event notifications will be sent via email, SMS text, or SNMP trap to designated users so that they can take immediate actions. The USB port supports easy firmware upgrade. Moreover, the featured RJ45 port enables the connection of the optional environmental sensor (ENVIROSENSOR), which can provide real-time temperature and humidity monitoring in an IT center.








Description

Specification

  • Type: Switched Metered-by-Outlet
  • Phase: Single Phase
  • Input: Nominal Input Voltage: 100 ~ 240 Vac
    Input Frequency: 50 / 60 Hz
    Maximum Input Current: 16A
    Input Connector Type: IEC C20 x 1
    Power Cord Length: 10 ft
    Power Cord Length: 3.05 m
  • Output: Output Voltage: Depends on Input
    Idle Power Consumption: < 5W
    Outlets – # of Bank(s): 1
    Outlet(s): 8 Total
    Outlet(s) Front: 8
    Outlet Type: IEC C13 x 8
    Remote Individual Outlet Control
  • LCD Information Display: Input Voltage (Volts)
    Input Frequency (Hz)
    Current Level (Amps)
    Power Consumption (Kilowatts)
    Network Information
    Serial Number
    Environment Status
    Hardware Version
    Firmware Version
  • Colour LCD: Yes
  • Hot-swappable LCD Module: Yes
  • LCD Setting & Control: Outlet Control
    LCD Settings
    Reset / Reboot
  • LED Indicators: “PDU Status, Tx/Rx, Link, Outlet”
  • Additional Ports: USB Type-A
    RJ45
    RJ45 (for Serial)
    RJ45 (for ENVIROSENSOR/Daisy Chain (In))
    RJ45 (for Daisy Chain (Out))
  • Form Factor: 1U Vertical Rackmount
    1U Horizontal Rackmount
  • Enclosure Construction: Steel
  • Cord Retention Tray: Yes
  • IEC Receptacle Locking: Yes
  • External Site Ground Pin: Yes
  • Adjustable Mounting Brackets: “2 Set (L-short, L-long)”
  • Weight/Dimensions : 2.1 kg
    (WxHxD) 433 x 44 x 112 mm
  • Environmental: “High Temperature Operation
    Operating Temperature: 0 ~ 60 °C
    Operating Relative Humidity (Non-condensing): 0 ~ 95%
    Operating Elevation: 0-11,483 feet (0-4,000 meters)
    Storage Temperature: -15 ~ 65 °C
    Storage Relative Humidity (Non-condensing): 0 ~ 95 %
    Storage Elevation: 0-49,213 feet (0-15,000 meters)”
  • Certifications: “CE, FCC Class A, UL60950, UL62368, EN 55032 Class A
    RoHS”
  • Additional Features: See Overview
  • Package Contents: PDU81005
    Users Manual
    Cord Retention Tray
    Mounting Brackets
    Cable Ties
    Screw Kit
    Power Cord
    Serial Cable
  • Package Weight: 4.2300 kg
  • Warranty: 2 Years

Additional information

EAN
