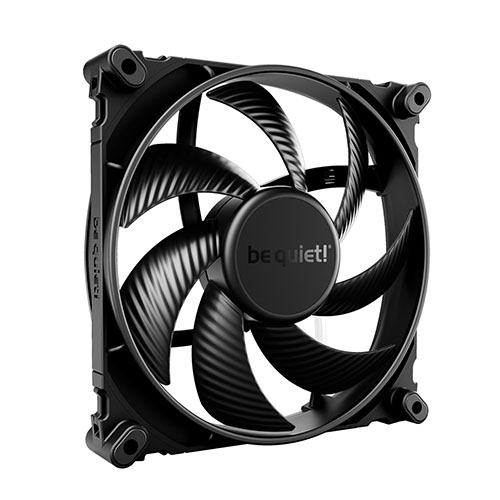

Be Quiet! (BL096) Silent Wings 4 14cm PWM Case Fan, Black, Up to 1100 RPM, Fluid Dynamic Bearing

Be Quiet! (BL096) Silent Wings 4 14cm PWM Case Fan, Black, Up to 1100 RPM, Fluid Dynamic Bearing

Compare

28.71 incl. Vat

Out of stock

SKU: CF140-BQSIL4-PWM Categories: , Tag:

Description

Silent Wings 4 140mm PWM combines all features of a virtually inaudible with an extremely performant fan for the most demanding applications.


  • Optimized fan blades for the highest performance on heat sinks
  • Small tip clearance and a fan frame with funnel-shaped air outlets for extremely high air pressure
  • Virtually inaudible operation at regular speed
  • 6-pole fan motor and fluid-dynamic bearing for less vibration and very smooth operations
  • Anti-vibration mounting with push pins and screwed installation option
  • Super-long lifespan of up to 300,000h
  • Elegant look with high-grade fan sticker in an all-black design
  • 5-year manufacturer warranty
No Compromise Silence And Performance

Equally quiet and performant operation

Silent Wings 4 140mm PWM is the fan of choice for all possible operations. Be it in a case, on radiators or heat sinks – Features like the silence-optimized fan blades and the funnel shaped fan frame make Silent Wings 4 140mm PWM a fan that makes no compromises between virtually inaudible operation and high performance.





Optimized For High-End Performance

Minimum tolerances for maximum air pressure

Silent Wings 4 140mm PWM makes for extraordinary air pressure and, therefore, significant increases in the system’s performance. The decreased distance between the fan blades and the frame makes it possible. By that, the Silent Wings 4 140mm PWM allows the user to run even the most demanding applications.




Different Mounting Options

For any purpose

Silent Wings 4 140mm PWM has 2 mounting options in the scope of delivery. The pre-installed anti-vibration mounting reduces noise-generating vibrations to a minimum. For radiators and heat sinks, the plastic mounting is the first choice. Both solutions have in common that they enable virtually inaudible operation at regular speed.




6-Pole Fan Motor

The key for virtually inaudible operation when needed

6-pole fan motor with 3 phases for very low power consumption, less vibration and therefore quiet max. operation of 13.6dB(A). Equipped with this state-of-the-art technology the fan is virtually inaudible when operated
in mid-speed.




Fluid-Dynamic Bearing

For a sustainable operation

The advanced fluid-dynamic bearing (FDB) enables a super long fan life of up to 300,000 hours. In addition, it reduces the vibrations significantly and supports the virtually inaudible operation of Silent Wings 4 140mm PWM.





Elegant Look

Magnificent appearance from all angles

Be it as a radiator fan or in the case: Silent Wings 4 140mm PWM always makes a good impression. The all-black design combined with the high-grade fan sticker makes the fan shine in any system. This makes
Silent Wings 4 140mm PWM a high performant and an incredibly good-looking fan.




Description

Specification

  • Size: 14cm Case Fan
  • Fan Connector(s): 4-pin
  • Fan Controller: PWM
  • Installation: Push pins and screwed installation options
  • #Hide#LED Lighting: No
  • Colour: Black
  • LED Lighting:
  • Weight: 0.22 kg
  • Fan Dimensions: 140 x 140 x 25 mm
  • Rotation Speed: Up to 1100 RPM
  • Fan Bearing: Fluid Dynamic
  • Air Flow: 51.3 CFM @ 100% PWM / 12V
  • Noise level: 13.6 dB(A) @ 100% PWM / 12V
  • Power: Rated Voltage DC: 12 V
    Operating Voltage DC: 5 – 13.2 V
    Current consumption: 0.30 A
    Safety current: 0.33 A
    Input power: 3.6 W
  • Additional Features: See Overview / Video
  • MTBF: “Up to 300,000 hours”
  • Package Contents: Silent Wings 4 fan
    Rubber and hard plastic mounting
    Push-pins
    Fan screws
    Manual
    SATA multi-voltage adapter
  • Package Type: Retail
  • Package Weight: 0.4000 kg
  • Warranty: 5 Years

Additional information

EAN

,
