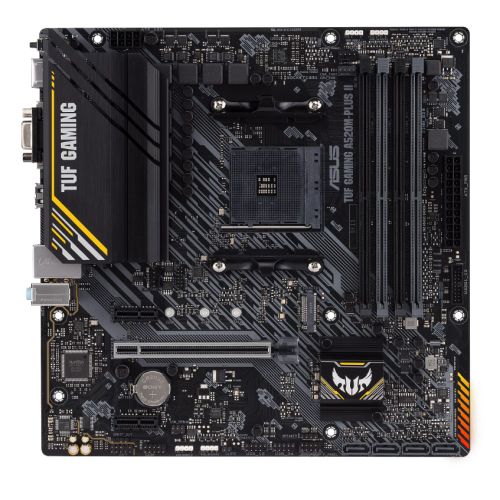

Asus TUF GAMING A520M-PLUS II, AMD A520, AM4, Micro ATX, 4 DDR4, VGA, HDMI, DP, 1x M.2

Add to wishlist
Compare

Asus TUF GAMING A520M-PLUS II, AMD A520, AM4, Micro ATX, 4 DDR4, VGA, HDMI, DP, 1x M.2

Add to wishlist
Compare

€139.41

147 in stock

SKU: AUMBA520MPLUS-TUF2 Categories: , , , Tag:

Description

AMD A520 (Ryzen AM4) micro ATX gaming motherboard with M.2 support, DisplayPort, HDMI, D-Sub, USB 3.2 Gen 1 ports, SATA 6 Gbps, and AURA Addressable Gen 2 headers


  • AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
  • Comprehensive cooling: Large VRM heatsink, PCH heatsink, Fan Xpert 2+
  • Made for online gaming: TUF LANGuard and TurboLAN technology
  • Aura Sync RGB: Onboard RGB headers and addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware




Durable. Stable. Reliable.
TUF Gaming A520M-Plus II distills essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability.

When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, best compatibility, and complementary aesthetics from components to case.




Rock-Solid Performance
With upgraded power delivery and comprehensive cooling options to fuel the latest AMD Ryzen CPUs, plus support for faster memory, TUF Gaming A520M-Plus II is the perfect foundation for your next high-core-count battle rig.




Easy PC DIY
TUF Gaming motherboards are designed to be easy to set up and configure just the way you want — even for first-time builders. The TUF Gaming Alliance ecosystem makes selecting compatible parts easy, while Armoury Crate software offers full control of system settings via a single dashboard. TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity.




Immersive Gaming
TUF GAMING A520M-Plus II provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere.





                                             ** Click here for full product details **

Description

Specification

  • Motherboard Type: Desktop
  • Form Factor: Micro ATX
  • Socket: AMD AM4
  • Chipset: AMD A520
  • #Hide#DDR Type: DDR4
  • CPU Support: Click here for CPU support
  • RAM Technology: DDR4 (Dual Channel)
  • RAM Slots: 4 x DIMM
  • RAM Speeds: Up to 4866(OC)
  • Maximum Memory: 128GB
  • Graphics: Integrated Graphics Processor*

    Graphics specifications may vary between CPU types

  • Graphics Ports: 1 x VGA
    1 x HDMI
    1 x DisplayPort
  • PCI/PCI Express: 1 x PCIe 3.0 x16 (supports x16 mode)
    2 x PCIe 3.0 x1
  • Storage: 4 x SATA III
    1 x M.2 (2242/2260/2280) – SATA & PCIe
  • RAID: “RAID 0, 1, 10”
  • Wireless: –
  • LAN: GB LAN
  • Audio: Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC
  • USB Ports Supported: “6 x USB 3.2 Gen1 Type-A (4 at back, 2 at mid-board)
    5 x USB 2.0 (2 at back, 3 at mid-board)”
  • Back Panel I/O Ports: 4 x USB 3.2 Gen1 Type-A
    2 x USB 2.0
    1 x BIOS FlashBack button
    1 x DisplayPort
    1 x HDMI
    1 x D-Sub
    1 x Realtek 1Gb Ethernet
    3 x Audio jacks
    1 x PS/2 Keyboard/Mouse combo
  • Internal I/O Connectors: 1 x 4-pin CPU Fan
    2 x 4-pin Chassis Fan
    1 x 24-pin Main
    1 x 8-pin +12V
    1 x M.2 (Key M)
    4 x SATA 6Gb/s
    1 x USB 3.2 Gen1
    2 x USB 2.0
    2 x AURA Addressable Gen2
    2 x AURA RGB
    1 x Clear CMOS
    1 x COM Port
  • .: 1 x Front Panel Audio
    1 x S/PDIF Out
    1 x Speaker
    1 x SPI TPM (14-1pin)
    1 x 10-1 pin System Panel
  • Accessories: 2 x SATA 6Gb/s cables
    1 x I/O Shield
    1 x M.2 SSD screw package
    1 x TUF Gaming sticker
    1 x Support DVD
    1 x TUF Certification card
    1 x User manual
  • Additional Features: See Overview
  • Package Type: Retail
  • Package Weight: 1.3000 kg
  • Warranty: 3 Years
  • #Hide#M.2 Slot(s): Yes (M.2)
  • #Hide#No. LAN Ports: 1 x LAN
  • #Hide#Max LAN Speed: GB LAN
