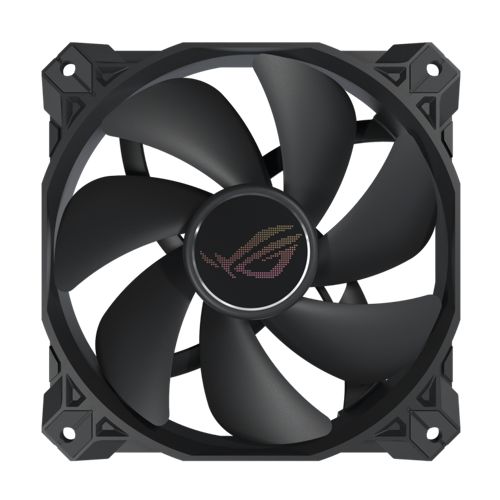

Asus ROG STRIX XF120 12cm PWM Case/Radiator Fan, Whisper-quiet, MagLev Bearing, Polychromatic ROG Logo, 1800 RPM, 5 Year Warranty

Asus ROG STRIX XF120 12cm PWM Case/Radiator Fan, Whisper-quiet, MagLev Bearing, Polychromatic ROG Logo, 1800 RPM, 5 Year Warranty

Compare

37.86

3 in stock

SKU: CF-ASXF120 Categories: , Tag:

Description



Whisper-quiet, 4-pin PWM fan for PC cases, radiators or CPU cooling


  • Optimal blend of airflow and static pressure: Enables use as a PC case, radiator or CPU cooler fan
  • MagLev bearing: Stabilizes rotor for reduced friction and noise, and offers 400,000-hour life span
  • Minimized acoustic profile: Whisper-quiet, 22.5 dB(A) cooling performance and tuned to deliver a smooth and stable sound frequency
  • Aerodynamic fan blade and frame design: Minimizes turbulence and maximizes airflow
  • Extensive operating range: 250 – 1800 rpm range for more flexibility and to create a quiet fan curve (fan spins down at 0% PWM utilization)
  • Anti-vibration pads and mounts: Reduces vibration and prevents rattling
  • 5-year warranty




Magnetic-Levitation Technology

The fan bearing in ROG Strix XF 120 features 360° MagLev technology to prevent slanting and friction. This technology delivers exceptional cooling performance, low noise and a long lifespan of up to 400,000 hours.





Fan-Blade Grooves

Precision-engineered grooves on the fan blades direct and focus air to flow smoothly along the blades for reduced flow separation. This increases fan performance and reduces vortex noise, improving overall acoustics.





Direct-Flow Frame

The angle and curvature of the frame struts are carefully designed to direct and channel airflow in a unidirectional, highly focused stream. This design minimizes turbulence and the focused airflow enhances static pressure.





Dynamic Balance Pre-Calibration

The balance of each fan is manually tuned to minimize inefficiency and ensure optimal performance.





Precise, Flexible PWM Speed Control

An extensive operating range of 250 – 1800 rpm offers the precision and flexibility to maximize cooling performance across various workloads, and the fan automatically turns off when set to 0% PWM duty cycle for an ultralow noise profile when handling lighter workloads.




Description

Specification

  • Type: 12cm Case Fan
  • Fan Connector(s): 4-pin
  • #Hide#LED Lighting: No
  • Colour: Black with polychromatic ROG logo
  • Material: Fiberglass-reinforced blades
  • Fan Dimensions: 120 x 120 x 25 mm
  • Fan Controller: PWM
  • Rotation Speed: 1800 RPM (+/- 10%)
  • Fan Bearing: Magnetic-levitation bearing
  • Air Flow: 62.5 CFM
  • Noise level: 22.5 dB(A)
  • Power: Input Power: 1.08W
    Operating Voltage: 12V
    Starting Voltage: 10.2V
    Input Current: 0.09A
  • Additional Features: See Overview / Video
  • Package Type: Retail
  • Package Weight: 0.3500 kg
  • Warranty: 5 Years
