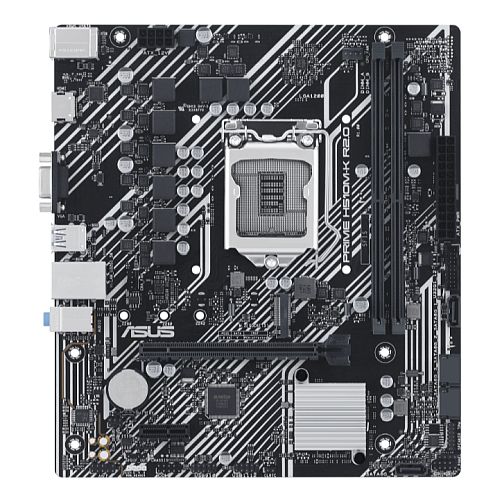

Asus PRIME H510M-K R2.0, Intel H470, 1200, Micro ATX, 2 DDR4, VGA, HDMI, 1x M.2
Asus PRIME H510M-K R2.0, Intel H470, 1200, Micro ATX, 2 DDR4, VGA, HDMI, 1x M.2
€122.58
94 in stock
Description
Intel® H470 (LGA 1200) micro ATX motherboard with PCIe 4.0, 32Gbps M.2 slot, HDMI™, VGA, USB 3.2 Gen 1 Type-A, SATA 6 Gbps, Intel® Optane Memory Ready, FAN Xpert, Armoury Crate, 5X PROTECTION III
- Intel® LGA 1200 socket: Ready for 11th and 10th Gen Intel® Processors
- Ultrafast connectivity: PCIe 4.0, 32Gbps M.2 slot, 1 Gb Ethernet and USB 3.2 Gen 1
- Comprehensive cooling: PCH heatsink and Fan Xpert
- 5X Protection III: Multiple hardware safeguards for all-round protection
Prime
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 11th and 10th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME H510M-K R2.0 provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.
Flexibility
Comprehensive controls form the foundation of the ASUS Prime series. The Prime H510 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work, to maximize productivity.
Cooling
Prime H510 series is engineered with an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
Performance
Prime H510 series is built to handle the additional cores and increased bandwidth of 11th Generation Intel® Core™ processors. ASUS H510 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.
Customisation
Prime H510 series adds the nuanced details that improve every experience, exclusive codecs that provide pristine audio quality let you customize your system to create a uniquely personal look.
Outstanding Audio
** Click here for full product details **
Description
Specification
- Motherboard Type: Desktop
- Form Factor: Micro ATX
- Socket: Intel 1200 – Comet Lake
- Chipset: Intel H470
- #Hide#DDR Type: DDR4
- CPU Support: Click here for CPU support
- RAM Technology: DDR4 (Dual Channel)
- RAM Slots: 2 x DIMM
- RAM Speeds: Up to 3200(OC)
- Maximum Memory: 64GB
- Graphics: Integrated Graphics*
*Graphics specifications may vary between CPU types
- Graphics Ports: 1 x VGA
1 x HDMI - PCI/PCI Express: 1 x PCIe 4.0/3.0 x16
1 x PCIe 3.0 x1 - Storage: 4 x SATA III
1 x M.2 (2242/2260/2280) – SATA & PCIe - Wireless: –
- LAN: GB LAN
- Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
- USB Ports Supported: “6 x USB 3.2 Gen1 (4 at back, 2 at mid-board)
6 x USB 2.0 (2 at back, 4 at mid-board)” - Back Panel I/O Ports: 4 x USB 3.2 Gen1 Type-A
2 x USB 2.0
1 x VGA
1 x HDMI
1 x Realtek 1Gb Ethernet
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo - Internal I/O Connectors: 1 x 4-pin CPU Fan
1 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
1 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 3.2 Gen1
2 x USB 2.0
1 x RGB
1 x Clear CMOS
1 x COM Port
1 x Front Panel Audio - .: 1 x S/PDIF Out
1 x Speaker
1 x SPI TPM (14-1pin)
1 x 10-1 pin System Panel - Accessories: 2 x SATA 6Gb/s cables
1 x I/O Shield
1 x M.2 Anchor
1 x User guide - Additional Features: See Overview
- Package Type: Retail
- Package Weight: 0.8000 kg
- Warranty: 3 Years
- #Hide#M.2 Slot(s): Yes (M.2)
- #Hide#No. LAN Ports: 1 x LAN
- #Hide#Max LAN Speed: GB LAN
Additional information
| EAN |
|---|
