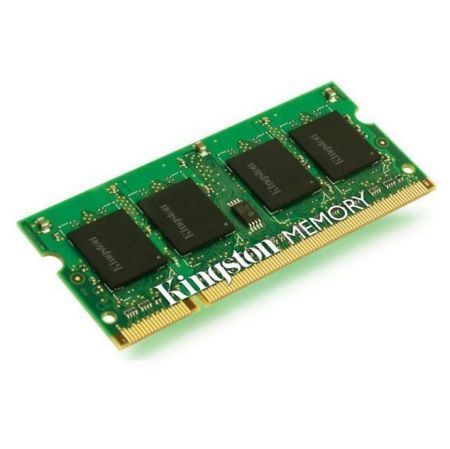

Kingston 8GB, DDR3L, 1600MHz (PC3L-12800), CL11, SODIMM Memory *Low Voltage 1.35V*

Kingston 8GB, DDR3L, 1600MHz (PC3L-12800), CL11, SODIMM Memory *Low Voltage 1.35V*

Compare

51.16

Out of stock

SKU: D3SO-8G1600KING11-LV Category: Tag:

Description

KVR16LS11/8
8GB 2Rx8 1G x 64-Bit PC3L-12800 CL11 204-Pin SODIMM

ValueRAM's 1G x 64-bit (8GB) DDR3L-1600 CL11 SDRAM (Synchronous DRAM), 2Rx8, low voltage, memory module, based on sixteen 512M x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR3-1600 timing of 11-11-11 at 1.35V or 1.5V. This
204-pin SODIMM uses gold contact fingers.



Features

• JEDEC standard 1.35V (1.28V ~ 1.45V) and 1.5V (1.425V ~ 1.575V) Power Supply
• VDDQ = 1.35V (1.28V ~ 1.45V) and 1.5V (1.425V ~ 1.575V)
• 800MHz fCK for 1600Mb/sec/pin
• 8 independent internal bank
• Programmable CAS Latency: 11, 10, 9, 8, 7, 6
• Programmable Additive Latency: 0, CL – 2, or CL – 1 clock
• 8-bit pre-fetch
• Burst Length: 8 (Interleave without any limit, sequential with starting address “000” only), 4 with tCCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS]
• Bi-directional Differential Data Strobe
• Internal(self) calibration : Internal self calibration through ZQ pin (RZQ : 240 ohm ± 1%)
• On Die Termination using ODT pin
• Average Refresh Period 7.8us at lower than TCASE 85°C, 3.9us at 85°C < TCASE < 95°C
• Asynchronous Reset
• PCB: Height 1.18” (30mm), double sided component

Description

Specification

  • Series: Kingston ValueRAM
  • DDR Type: DDR3 SODIMM
  • Size: 1 x 8GB
  • #Hide#Individual Module Size: 8GB
  • Speed: 1600 MHz
  • Compliance: PC3L-12800
  • Pins: 204-pin
  • CAS Latency: CL11
  • Data Integrity Check: Non-ECC
  • Low Voltage: Yes
  • Voltage: 1.35V
  • Additional Information: Unbuffered
  • Package Type: Blister Pack
  • Package Weight: 0.0690 kg
  • Warranty: Lifetime
