Description
Â

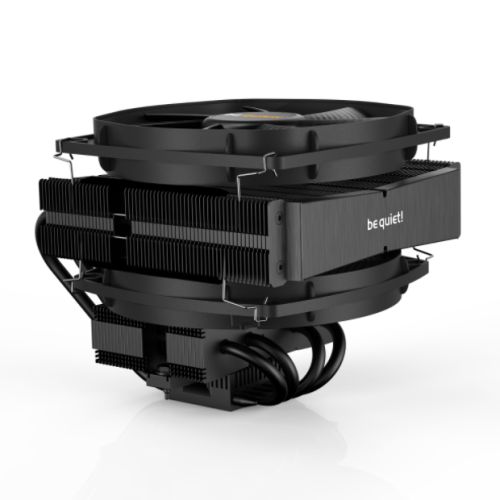

Dark Rock TF 2 offers extreme cooling performance for the CPU and surrounding components as well as virtually inaudible operation.
Â
- Extremely high cooling performance with 230W TDP
- Two heat sinks with anti-vibration rubber inserts
- Six high-performance 6mm heat pipes
- Silent Wings 3 135mm with funnel shaped air-inlet and a Silent Wings 135mm for virtually inaudible operation of max. 27.1dB(A)
- Optimized mounting system makes for an easy installation
- Special black coating with ceramic particles enables perfect heat transfer
- Brushed aluminum top cover for elegant look
- Three-year manufacturer's warranty
- Product conception, design and quality control in Germany
Â
Achieving an incredible performance-to-noise ratio
Â
Thanks to its double-tower layout, this cooler is a true cooling marvel with 230W TDP – just perfect for the extreme conditions found in gaming PCs with overclocked CPUs that require a top flow cooler. Its design provides ideal cooling, not only for the CPU, but also for surrounding components.
Â
Â
Â
Â
Â
Cooled by Silent Wings
Â
With a funnel shaped Silent Wings 3 135mm as the upper fan, Dark Rock TF 2 provides highest cooling performance. A second Silent Wings fan takes care of airflow inbetween the two heat sinks. Both fans feature advanced fluid-dynamic bearings, smooth six-pole motors and up to nine airflow-optimized fan blades. The noise is a meager 27.1dB(A) even at 100% PWM fan speed. Anti-vibration rubber inserts on the cooling fins of the heat sink further dampen noise.
Â
Â
Â
Â
Â
Cooled by Silent Wings
Â
With a funnel shaped Silent Wings 3 135mm as the upper fan, Dark Rock TF 2 provides highest cooling performance. A second Silent Wings fan takes care of airflow inbetween the two heat sinks. Both fans feature advanced fluid-dynamic bearings, smooth six-pole motors and up to nine airflow-optimized fan blades. The noise is a meager 27.1dB(A) even at 100% PWM fan speed. Anti-vibration rubber inserts on the cooling fins of the heat sink further dampen noise.
Â
Â
Â
Â
Â
Powerful cooling for your components
Â
Dark Rock TF 2 contains two aluminum heat sinks that are arranged to save space for memory with a height of 49mm. It provides two fans out of the box, but a single fan assembly is also possible, offering further space savings and even quieter operation.
Â
Â
Â
Â
Â
For an unmistakable beefy look
Â
The all-black design combined with the brushed aluminum cover gives this high-end cooler a touch of elegance and makes it look great in any system.
Description
Specification
- Type: CPU Air Cooler
- AMD/Intel: Combo
- Compatibility: Intel: 1700 / 1200 / 2066 / 1150 / 1151 / 1155 / 2011(-3) Square ILM
AMD: AM4 / AM5
- TDP: 230 W
- Fan Connector(s): 4-pin
- Fan Controller: PWM
- Fan Bearing: Fluid Dynamic bearing
- Rotation Speed: 1400 / 1300 RPM
- Installation: Optimized mounting system makes for an easy installation
- #Hide#LED Lighting: No
- Colour: Black
- LED Lighting: –
- Material: Fin material: Aluminum
Base material: Copper
CPU contact surface: CNC machined
Surface treatment: Ceramic coating - Weight: 0.945 kg (total weight)
- Dimensions: Overall w/o mounting material (LxWxH): 163 x 140 x 134 mm
Heatsink: 163 x 140 x 109 mm - Fan Dimensions: 135 x 135 x 22 cm
1 x Silent Wings 3 135mm PWM / 1 x Silent Wings 135mm PWM - Noise level: @ 50/75/100%: 11.1 / 19.7 / 27.1 dBA
- Power: Rated Voltage: 12 V
Input current: 0.2 / 0.4 A
Input power: 2.4 / 4.8 W - Additional Features: See Overview / Video
- MTBF: “300,000 hours”
- Package Contents: BK031 Dark Rock TF 2
Thermal grease
Intel & AMD mounting set
User manual - Package Type: Retail
- Package Weight: 1.6000 kg
- Warranty: 3 Years
- #Hide#115x Sockets: Supports Sockets 115x
- #Hide#2066 Socket: Supports Socket 2066
- #Hide#2011(-3) Socket: Supports Socket 2011(-3)
- #Hide#1700 Socket: Supports Socket 1700
- #Hide#1200 Socket: Supports Socket 1200
- #Hide# AM5 Socket: Supports Socket AM5
- #Hide#AM4 Socket: Supports Socket AM4
