Description

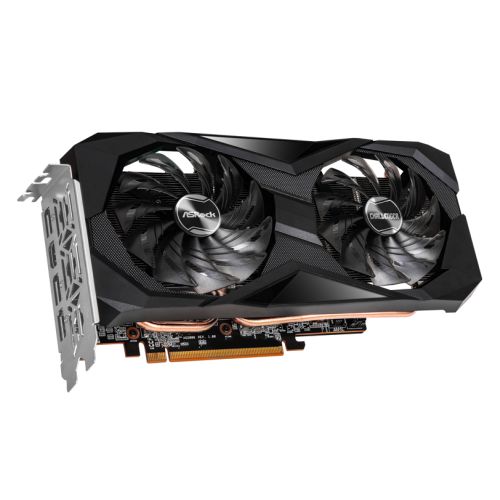

AMD Radeon RX 7600 Challenger 8GB OC
Â
- Boost Clock: Up to 2695 MHz / 18 Gbps
- Game Clock: 2280 MHz / 18 Gbps
- Base Clock: 1770 MHz / 18 Gbps
- AMD Radeon™ RX 7600
- 8GB GDDR6
- DirectX 12 Ultimate
- PCI® Express 4.0 Support
- 1 x 8-pin Power Connector
- 3 x DisplayPort™ 1.4 with DSC / 1 x HDMI™ 2.1 VRR
- Dual Fan Design
- Stylish Metal Backplate
- Striped Axial Fan
- Ultra-fit Heatpipe
- 0dB Silent Cooling
- Super Alloy Graphics Card
Â
Â
Â
Â
Dual Fan Design
Two fans that provide strong cooling performance and make your gaming rig stay cool. It’s optimized for delivering excellent gaming experience with stylish and streamlined design.
Stylish Metal Backplate
Solid, Fancy, Cool.
Designed to avoid PCB bending. The fancy outlook makes the graphic card more legendary in visual. It also helps to enhance cooling with the premium thermal pads equipped backside.
Striped Axial Fan
Designed For Enhanced Airflow.
ASRock’s custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side.
0dB Silent Cooling
Spin For Cooling, Stop For Silence.
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.
Ultra-fit Heatpipe
Consolidated to Maximize the Contact.
The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.
Nano Thermal Paste
Perfect Thermal Teamwork.
Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.
Premium Thermal Pad
Better Heat Transfer.
The premium thermal pad helps to transfer the heat of the components to the heatsink, improving heat dissipation.
Precise Screw Torque
Optimized Mounting Pressure.
ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.
Dr. MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Intelligently delivering higher current and driving up to 50A continuous current for each phase, thus providing improved thermal result and superior performance.
Premium 90A Power Choke
Compared to traditional chokes, ASRock’s premium 90A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the graphics card.
2oz Copper PCB
Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.
Matte Black PCB
A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end graphics card.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the graphics card against electrical shorts caused by humidity.
ASRock Tweak 2.0
Pro and Easy-to-Use Tuning Utility.
Provides the smart fan speed control and instant performance tweaking.
Â
8K Resolution Support
Not only can it handles 4K graphics but also supports the next generation 8K video output for the ultimate visual experience.
Â
PCI® Express 4.0 Support
This graphics card features PCI® Express 4.0 support, with a throughput of 16 GT/s and enables two times the bandwidth compared to PCI® Express 3.0. Get ready for the next generation of PC gaming.
Â
AMD Eyefinity Technology
AMD Eyefinity technology expands the traditional limits of desktop computing by multiplying your screen area. With multiple monitors, games become more immersive, workstations become more useful and you become more productive.
Â
Description
Specification
- Chipset Manufacturer: AMD
- Interface: PCI Express 4.0
- Graphics Chipset: AMD RX 7600
- Memory Size: 8GB
- Memory Type: DDR6
- Memory Interface: 128-bit
- Core Clock: Boost Clock: Up to 2695 MHz
Game Clock: 2280 MHz
Base Clock: 1770 MHz - Memory Clock: 18 Gbps
- CUDA Cores / Stream Processors: 2048 Stream Processors
- Outputs: 1 x HDMI 2.1
3 x DisplayPort 1.4a with DSC - HDCP Support: Yes
- Resolution: Digital Max Resolution: 7680 x 4320
- DirectX Support: DirectX 12 Ultimate
- Max Display Support: 4
- Cooling: Dual fan design
Stylish metal backplate
Striped axial fan
Ultra-fit heatpipe
0dB silent cooling - PSU Requirements: 550W or greater recommended
- Connectors Required: 1 x 8-pin PCIe power
- Software: AMD Adrenalin Edition
- Additional Features: See Overview
- Dimensions: 269.2 x 131.8 x 40.3 mm
- Slot Size: 2 Slot
- Accessories: 1 x Quick Installation Guide
- Package Type: Retail
- #Hide#HDMI: Yes (HDMI)
- #Hide#DisplayPort: Yes (DisplayPort)
- Package Weight: 1.2000 kg
- Warranty: 2 Year Replacement Warranty
